Home / Product / Hongrui Solid Carbide Tools / HMH series for machining high hardness materials / HMH Series for Machining High Hardness Materials （2-flute flattened end mills with straight shank）

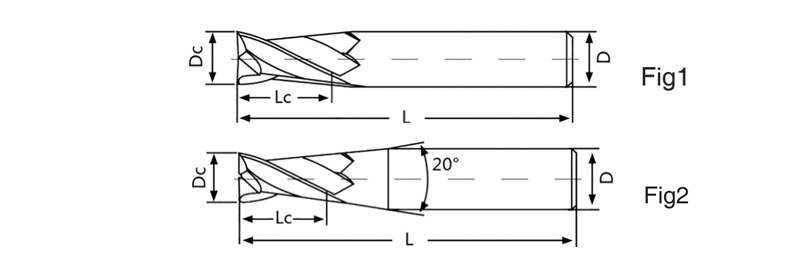

| Type | Basic dimension (mm) | Number of teeth | Figure | Stock | |||
| Dc | Lc | D | L | ||||
| HMH-2F010-D04 | 1 | 3 | 4 | 50 | 2 | Fig2 | ● |
| HMH-2F010-D06 | 1 | 3 | 6 | 50 | 2 | Fig2 | ● |
| HMH-2F015-D04 | 1.5 | 4 | 4 | 50 | 2 | Fig2 | ● |
| HMH-2F015-D06 | 1.5 | 4 | 6 | 50 | 2 | Fig2 | ● |
| HMH-2F020-D04 | 2 | 6 | 4 | 50 | 2 | Fig2 | ● |
| HMH-2F020-D06 | 2 | 6 | 6 | 50 | 2 | Fig2 | ● |
| HMH-2F025-D04 | 2.5 | 8 | 4 | 50 | 2 | Fig2 | ● |
| HMH-2F025-D06 | 2.5 | 8 | 6 | 50 | 2 | Fig2 | ● |
| HMH-2F030-D04 | 3 | 9 | 4 | 50 | 2 | Fig2 | ● |
| HMH-2F030-D06 | 3 | 9 | 6 | 50 | 2 | Fig2 | ● |
| HMH-2F035-D06 | 3.5 | 10 | 6 | 50 | 2 | Fig2 | ● |
| HMH-2F040 | 4 | 11 | 4 | 50 | 2 | Fig1 | ● |
| HMH-2F040-D06 | 4 | 11 | 6 | 50 | 2 | Fig2 | ● |
| HMH-2F045-D06 | 4.5 | 11 | 6 | 50 | 2 | Fig2 | ● |
| HMH-2F050-D06 | 5 | 13 | 6 | 50 | 2 | Fig2 | ● |
| HMH-2F055-D06 | 5.5 | 16 | 6 | 50 | 2 | Fig2 | ● |
| HMH-2F060 | 6 | 16 | 6 | 50 | 2 | Fig1 | ● |
| HMH-2F070-D08 | 7 | 20 | 8 | 60 | 2 | Fig2 | ● |
| HMH-2F080 | 8 | 20 | 8 | 60 | 2 | Fig1 | ● |
| HMH-2F090-D10 | 9 | 22 | 10 | 75 | 2 | Fig2 | ● |
| HMH-2F100 | 10 | 25 | 10 | 75 | 2 | Fig1 | ● |
| HMH-2F110-D12 | 11 | 26 | 12 | 75 | 2 | Fig2 | ● |
| HMH-2F120 | 12 | 30 | 12 | 75 | 2 | Fig1 | ● |
| HMH-2F140 | 14 | 32 | 14 | 100 | 2 | Fig1 | ● |
| HMH-2F160 | 16 | 45 | 16 | 100 | 2 | Fig1 | ● |
| HMH-2F180 | 18 | 45 | 18 | 100 | 2 | Fig1 | ● |
| HMH-2F200 | 20 | 45 | 20 | 100 | 2 | Fig1 | ● |
