HP500 Series for Machining with High Feed Rate (4-flute R end mills)

HP500 Series for Machining with High Feed Rate (4-flute R end mills)

Contact Us
  • HP500 Series for Machining with High Feed Rate (4-flute R end mills)
Description
Inquiry

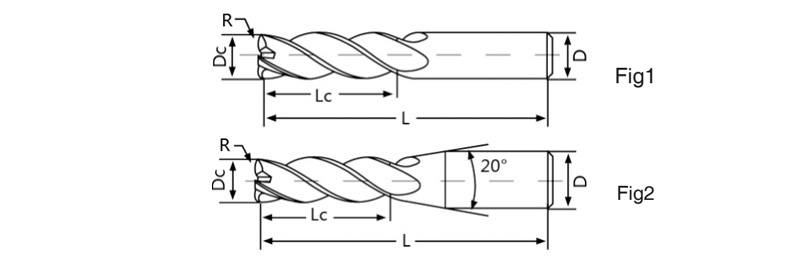

Type Basic dimension  (mm) Number of teeth Figure Stock
Dc R Lc D L
HP500 D1R0.2*3*50L*D4*4T 1 0.2 3 4 50 4 Fig2 ●
HP500 D1.5R0.2*4*4T*50L*D4*4T 1.5 0.2 4 4 50 4 Fig2 ●
HP500 D2R0.2*6*50L*D4*4T 2 0.2 6 4 50 4 Fig2 ●
HP500 D3R0.2*8*50L*D4*4T 3 0.2 8 4 50 4 Fig2 ●
HP500 D3R0.5*8*50L*D4*4T 3 0.5 8 4 50 4 Fig2 ●
HP500 D4R0.2*10*50L*D4*4T 4 0.2 10 4 50 4 Fig1 ●
HP500 D4R0.3*10*50L*D4*4T 4 0.3 10 4 50 4 Fig1 ●
HP500 D4R0.5*10*50L*D4*4T 4 0.5 10 4 50 4 Fig1 ●
HP500 D4R1*10*50L*D4*4T 4 1 10 4 50 4 Fig1 ●
HP500 D5R0.25*13*50L*D6*4T 5 0.25 13 6 50 4 Fig2 ●
HP500 D5R0.5*13*50L*D6*4T 5 0.5 13 6 50 4 Fig2 ●
HP500 D5R1*13*50L*D6*4T 5 1 13 6 50 4 Fig2 ●
HP500 D6R0.3*16*50L*D6*4T 6 0.3 16 6 50 4 Fig1 ●
HP500 D6R0.5*16*50L*D6*4T 6 0.5 16 6 50 4 Fig1 ●
HP500 D6R1*16*50L*D6*4T 6 1 16 6 50 4 Fig1 ●
HP500 D8R0.5*20*60L*D8*4T 8 0.5 20 8 60 4 Fig1 ●
HP500 D8R1*20*60L*D8*4T 8 1 20 8 60 4 Fig1 ●
HP500 D8R0.5*20*75L*D8*4T 8 0.5 20 8 75 4 Fig1 ●
HP500 D10R0.5*25*75L*D10*4T 10 0.5 25 10 75 4 Fig1 ●
HP500 D10R1*25*75L*D10*4T 10 1 25 10 75 4 Fig1 ●
HP500 D10R2*25*75L*D10*4T 10 2 25 10 75 4 Fig1 ●
HP500 D10R3*25*75L*D10*4T 10 3 25 10 75 4 Fig1 ●
HP500 D12R0.5*30*75L*D12*4T 12 0.5 30 12 75 4 Fig1 ●
HP500 D12R1*30*75L*D12*4T 12 1 30 12 75 4 Fig1 ●
HP500 D12R2*30*75L*D12*4T 12 2 30 12 75 4 Fig1 ●
HP500 D12R3*30*75L*D12*4T 12 3 30 12 75 4 Fig1 ●
● Stock available ○ Make-to-order
