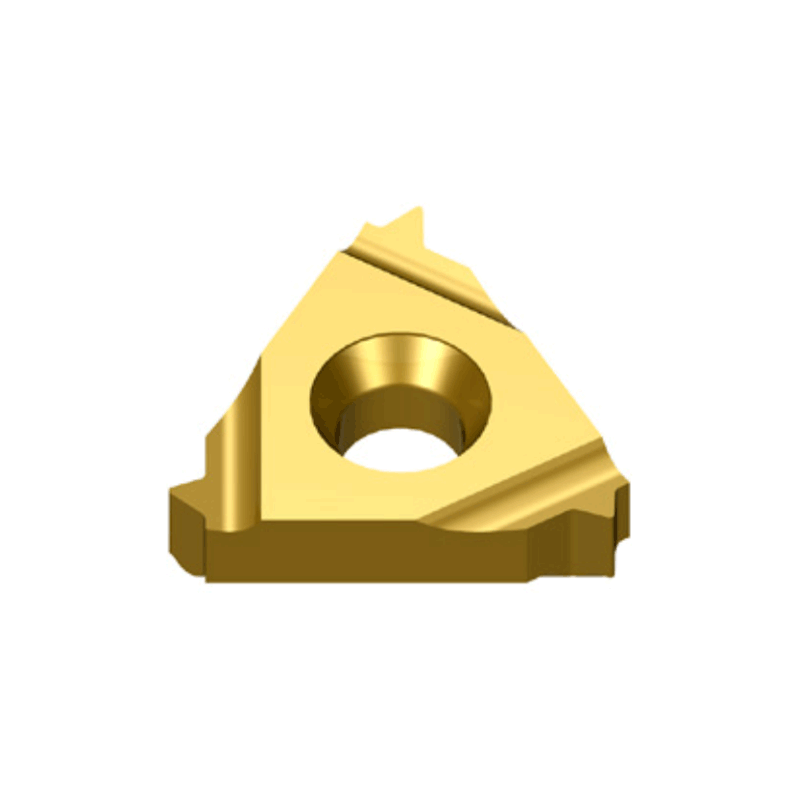

![Whitworth Thread [W] External Thread (ER-W)](/tzruian/2022/12/30/er-w.png)
| Blade Model | Processing Pitch Range | Blade Size | Coating Grade | |||||||
| mm | Number Of Teeth / Inch | IC | S | x | Y | RP9125B | RP1020 | RP1120A | RP1225 | |
| 16ER8W | 8 | 9.525 | 3.52 | 1.5 | 1.2 | ● | ● | |||
| 16ER9W | 9 | 9.525 | 3.52 | 1.7 | 1.2 | ● | ● | |||
| 16ER10W | 10 | 9.525 | 3.52 | 1.5 | 1.1 | ● | ● | |||
| 16ER11W | 11 | 9.525 | 3.52 | 1.5 | 1.1 | ● | ● | |||
| 16ER12W | 12 | 9.525 | 3.52 | 1.4 | 1.1 | ● | ● | |||
| 16ER14W | 14 | 9.525 | 3.52 | 1.2 | 1.0 | ● | ● | |||
| 16ER16W | 16 | 9.525 | 3.52 | 1.1 | 0.9 | ● | ● | |||
| 16ER18W | 18 | 9.525 | 3.52 | 1.0 | 0.8 | ● | ● | |||
| 16ER19W | 19 | 9.525 | 3.52 | 1.0 | 0.8 | ● | ● | |||
● Standard Stock
