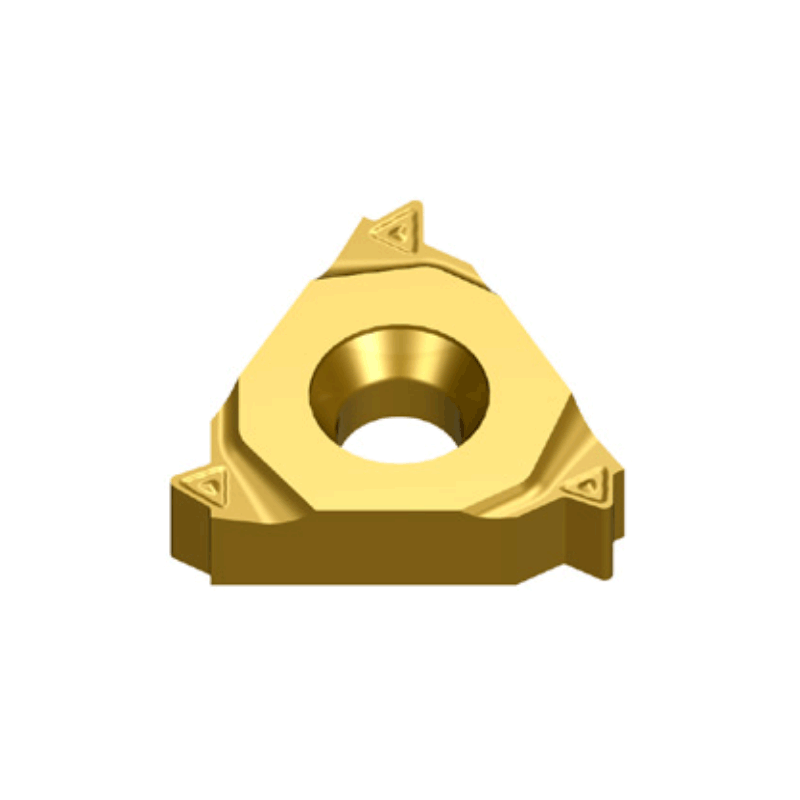

![Whitworth Thread [W] External Thread (ER-WA)](/tzruian/2022/12/30/er-wa.png)

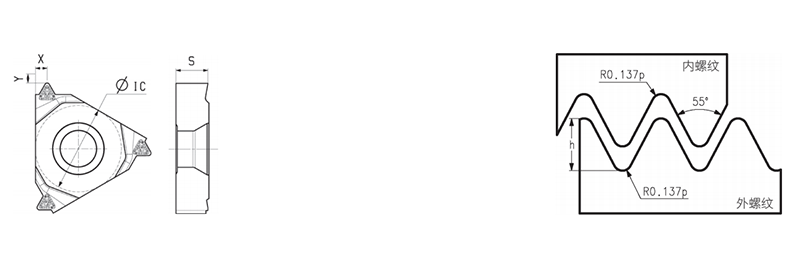

| Blade Model | Processing Pitch Range | Blade Size | Coating Grade | |||||||
| mm | Number Of Teeth / Inch | IC | S | x | Y | RP9125B | RP1020 | RP1120A | RP1225 | |
| 16ER8WA | 8 | 9.525 | 3.52 | 1.5 | 1.2 | ● | ● | |||
| 16ER9WA | 9 | 9.525 | 3.52 | 1.7 | 1.2 | ● | ● | |||
| 16ER10WA | 10 | 9.525 | 3.52 | 1.5 | 1.1 | ● | ● | |||
| 16ER11WA | 11 | 9.525 | 3.52 | 1.5 | 1.1 | ● | ● | |||
| 16ER12WA | 12 | 9.525 | 3.52 | 1.4 | 1.1 | ● | ● | |||
| 16ER14WA | 14 | 9.525 | 3.52 | 1.2 | 1.0 | ● | ● | |||
| 16ER16WA | 16 | 9.525 | 3.52 | 1.1 | 0.9 | ● | ● | |||
| 16ER18WA | 18 | 9.525 | 3.52 | 1.0 | 0.8 | ● | ● | |||
| 16ER19WA | 19 | 9.525 | 3.52 | 1.0 | 0.8 | ● | ● | |||
● Standard Stock
