Taizhou Ruian - Indexable hardmetal(carbide) inserts for cutting tools
Home / Product / Threading Inserts / Whitworth Thread W Series / Whitworth Thread [W] Internal Thread (IR-W)
Taizhou Ruian - Indexable hardmetal(carbide) inserts for cutting tools
Home / Product / Threading Inserts / Whitworth Thread W Series / Whitworth Thread [W] Internal Thread (IR-W)

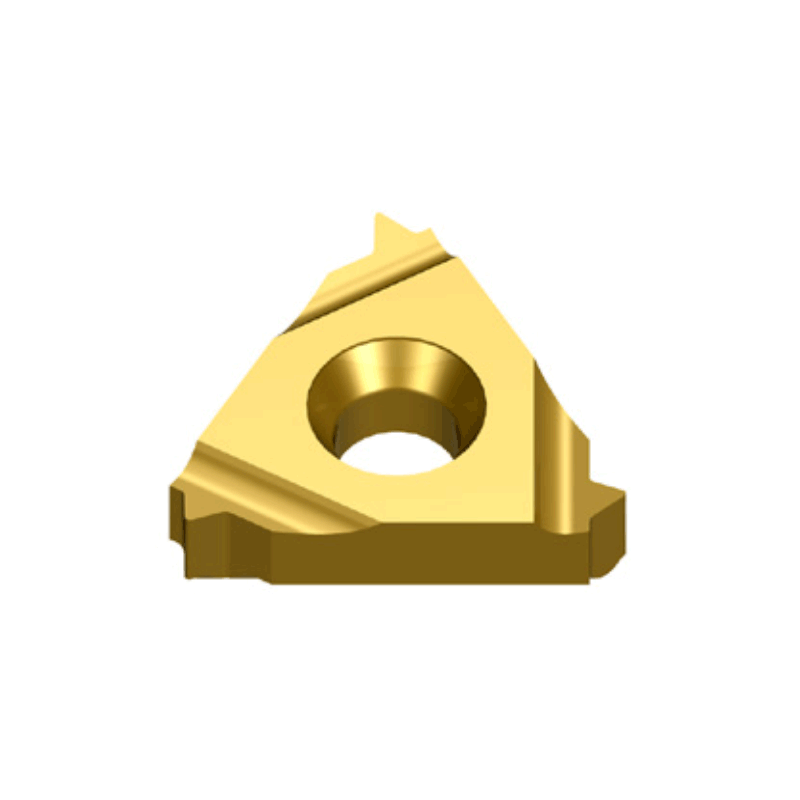

![Whitworth Thread [W] Internal Thread (IR-W)](/tzruian/2022/12/30/ir-w.png)
| Blade Model | Processing Pitch Range | Blade Size | Coating Grade | |||||||
| mm | Number Of Teeth / Inch | IC | S | x | Y | RP9125B | RP1020 | RP1120A | RP1225 | |
| 16IR8W | 8 | 9.525 | 3.52 | 1.5 | 1.2 | ● | ● | |||
| 16IR9W | 9 | 9.525 | 3.52 | 1.7 | 1.2 | ● | ● | |||
| 16IR10W | 10 | 9.525 | 3.52 | 1.5 | 1.1 | ● | ● | |||
| 16IR11W | 11 | 9.525 | 3.52 | 1.5 | 1.1 | ● | ● | |||
| 16IR12W | 12 | 9.525 | 3.52 | 1.4 | 1.1 | ● | ● | |||
| 16IR14W | 14 | 9.525 | 3.52 | 1.2 | 1.0 | ● | ● | |||
| 16IR16W | 16 | 9.525 | 3.52 | 1.1 | 0.9 | ● | ● | |||
| 16IR18W | 18 | 9.525 | 3.52 | 1.0 | 0.8 | ● | ● | |||
| 16IR19W | 19 | 9.525 | 3.52 | 1.0 | 0.8 | ● | ● | |||
● Standard Stock
