Home / Product / Hongrui Solid Carbide Tools / HMA series for machining aluminium alloy materials / HMA Series for Machining Aluminium Alloy Materials (2-flute ball nose end mills with straight shank)

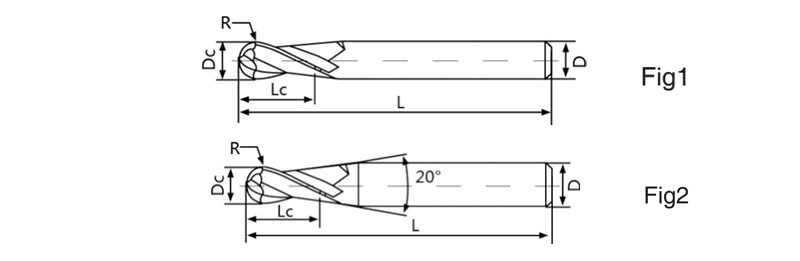

| Type | Basic dimension (mm) | Number of teeth | Figure | Stock | ||||
| R | Dc | Lc | D | L | ||||
| HMA-2B020-D06 | 1 | 2 | 4 | 6 | 60 | 2 | Fig2 | ● |
| HMA-2B030-D06 | 1.5 | 3 | 6 | 6 | 60 | 2 | Fig2 | ● |
| HMA-2B040-D06 | 2 | 4 | 8 | 6 | 60 | 2 | Fig2 | ● |
| HMA-2B050-D06 | 2.5 | 5 | 10 | 6 | 60 | 2 | Fig2 | ● |
| HMA-2B060 | 3 | 6 | 12 | 6 | 60 | 2 | Fig1 | ● |
| HMA-2B080 | 4 | 8 | 16 | 8 | 75 | 2 | Fig1 | ● |
| HMA-2B100 | 5 | 10 | 20 | 10 | 75 | 2 | Fig1 | ● |
| HMA-2B120 | 6 | 12 | 24 | 12 | 75 | 2 | Fig1 | ● |
