Home / Product / Hongrui Solid Carbide Tools / HMA series for machining aluminium alloy materials / HMA Series for Machining Aluminium Alloy Materials (2-flute flattened end mills with straight shank)

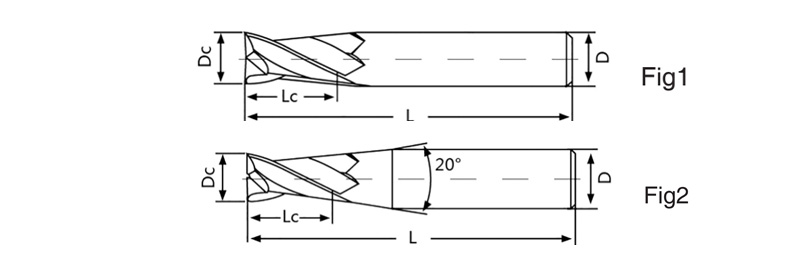

| Type | Basic dimension (mm) | Number of teeth | Figure | Stock | |||
| Dc | Lc | D | L | ||||
| HMA-2F010-D04 | 1 | 3 | 4 | 50 | 2 | Fig2 | ○ |
| HMA-2F015-D04 | 1.5 | 4 | 4 | 50 | 2 | Fig2 | ○ |
| HMA-2F020-D04 | 2 | 6 | 4 | 50 | 2 | Fig2 | ○ |
| HMA-2F025-D04 | 2.5 | 8 | 4 | 50 | 2 | Fig2 | ○ |
| HMA-2F030-D06 | 3 | 9 | 6 | 50 | 2 | Fig2 | ○ |
| HMA-2F040-D06 | 4 | 12 | 6 | 50 | 2 | Fig2 | ○ |
| HMA-2F050-D06 | 5 | 15 | 6 | 50 | 2 | Fig2 | ○ |
| HMA-2F060 | 6 | 18 | 6 | 60 | 2 | Fig1 | ○ |
| HMA-2F080 | 8 | 20 | 8 | 60 | 2 | Fig1 | ○ |
| HMA-2F100 | 10 | 30 | 10 | 75 | 2 | Fig1 | ○ |
| HMA-2F120 | 12 | 32 | 12 | 75 | 2 | Fig1 | ○ |
| HMA-2F160 | 16 | 45 | 16 | 100 | 2 | Fig1 | ○ |
| HMA-2F200 | 20 | 45 | 20 | 100 | 2 | Fig1 | ○ |
