Home / Product / Hongrui Solid Carbide Tools / HMA series for machining aluminium alloy materials / HMA Series for Machining Aluminium Alloy Materials (2-flute R end mills with long shank)

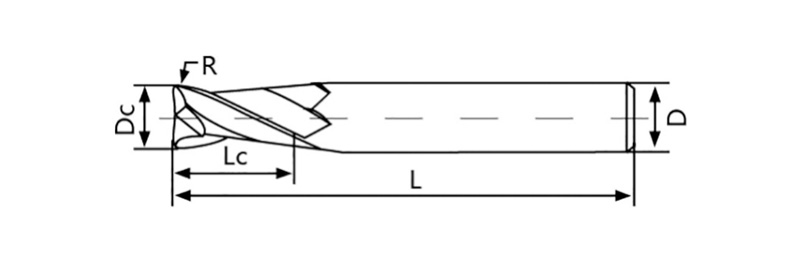

| Type | Basic dimension (mm) | Number of teeth | Stock | ||||
| R | Dc | Lc | D | L | |||
| HMA-2RH06005 | 0.5 | 6 | 16 | 6 | 75 | 2 | ○ |
| HMA-2RH06010 | 1 | 6 | 16 | 6 | 75 | 2 | ○ |
| HMA-2RH06015 | 1.5 | 6 | 16 | 6 | 75 | 2 | ○ |
| HMA-2RH08005 | 0.5 | 8 | 20 | 8 | 100 | 2 | ○ |
| HMA-2RH08010 | 1 | 8 | 20 | 8 | 100 | 2 | ○ |
| HMA-2RH08015 | 1.5 | 8 | 20 | 8 | 100 | 2 | ○ |
| HMA-2RH10005 | 0.5 | 10 | 25 | 10 | 100 | 2 | ○ |
| HMA-2RH10010 | 1 | 10 | 25 | 10 | 100 | 2 | ○ |
| HMA-2RH10015 | 1.5 | 10 | 25 | 10 | 100 | 2 | ○ |
| HMA-2RH10020 | 2 | 10 | 25 | 10 | 100 | 2 | ○ |
| HMA-2RH12005 | 0.5 | 12 | 30 | 12 | 100 | 2 | ○ |
| HMA-2RH12010 | 1 | 12 | 30 | 12 | 100 | 2 | ○ |
| HMA-2RH12015 | 1.5 | 12 | 30 | 12 | 100 | 2 | ○ |
| HMA-2RH12020 | 2 | 12 | 30 | 12 | 100 | 2 | ○ |
| HMA-2RH16005 | 0.5 | 16 | 36 | 16 | 100 | 2 | ○ |
| HMA-2RH16010 | 1 | 16 | 36 | 16 | 100 | 2 | ○ |
| HMA-2RH16015 | 1.5 | 16 | 36 | 16 | 100 | 2 | ○ |
| HMA-2RH16020 | 2 | 16 | 36 | 16 | 100 | 2 | ○ |
