Home / Product / Hongrui Solid Carbide Tools / HMA series for machining aluminium alloy materials / HMA Series for Machining Aluminium Alloy Materials (2-flute R end mills with straight shank)

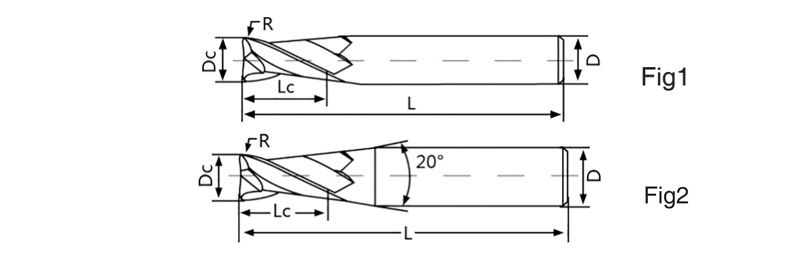

| Type | Basic dimension (mm) | Number of teeth | Figure | Stock | ||||
| R | Dc | Lc | D | L | ||||
| HMA-2R06005 | 0.5 | 6 | 16 | 6 | 50 | 2 | Fig1 | ○ |
| HMA-2R06010 | 1 | 6 | 16 | 6 | 50 | 2 | Fig1 | ○ |
| HMA-2R06015 | 1.5 | 6 | 16 | 6 | 50 | 2 | Fig1 | ○ |
| HMA-2R06020 | 2 | 6 | 16 | 6 | 50 | 2 | Fig1 | ○ |
| HMA-2R08003 | 0.3 | 8 | 20 | 8 | 60 | 2 | Fig1 | ○ |
| HMA-2R08005 | 0.5 | 8 | 20 | 8 | 60 | 2 | Fig1 | ○ |
| HMA-2R08010 | 1 | 8 | 20 | 8 | 60 | 2 | Fig1 | ○ |
| HMA-2R10015 | 1.5 | 10 | 25 | 10 | 75 | 2 | Fig1 | ○ |
| HMA-2R10020 | 2 | 10 | 25 | 10 | 75 | 2 | Fig1 | ○ |
| HMA-2R10030 | 3 | 10 | 25 | 10 | 75 | 2 | Fig1 | ○ |
| HMA-2R12005 | 0.5 | 12 | 30 | 12 | 75 | 2 | Fig1 | ○ |
| HMA-2R12010 | 1 | 12 | 30 | 12 | 75 | 2 | Fig1 | ○ |
| HMA-2R12015 | 1.5 | 12 | 30 | 12 | 75 | 2 | Fig1 | ○ |
| HMA-2R12020 | 2 | 12 | 30 | 12 | 75 | 2 | Fig1 | ○ |
| HMA-2R12030 | 3 | 12 | 30 | 12 | 75 | 2 | Fig1 | ○ |
| HMA-2R16010 | 1 | 16 | 36 | 16 | 100 | 2 | Fig1 | ○ |
| HMA-2R16020 | 2 | 16 | 36 | 16 | 100 | 2 | Fig1 | ○ |
| HMA-2R16030 | 3 | 16 | 36 | 16 | 100 | 2 | Fig1 | ○ |
