Taizhou Ruian - Indexable hardmetal(carbide) inserts for cutting tools
Home / Product / Hongrui Solid Carbide Tools / HMA series for machining aluminium alloy materials / HMA Series for Machining Aluminium Alloy Materials (2-flute R end mills with straight shank)

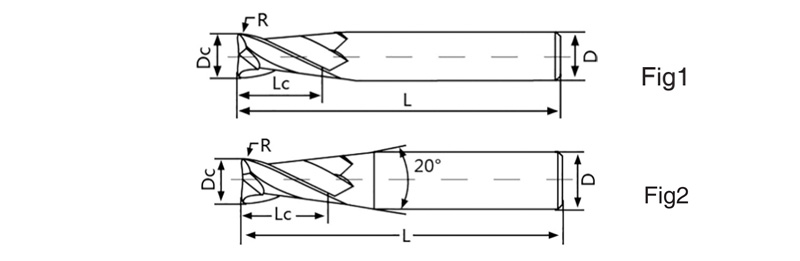

| Type | Basic dimension (mm) | Number of teeth | Figure | Stock | ||||
| R | Dc | Lc | D | L | ||||
| HMA-2R01001-D04 | 0.1 | 1 | 3 | 4 | 50 | 2 | Fig2 | ○ |
| HMA-2R02002-D04 | 0.2 | 2 | 6 | 4 | 50 | 2 | Fig2 | ○ |
| HMA-3R03002-D04 | 0.2 | 3 | 9 | 4 | 50 | 2 | Fig2 | ○ |
| HMA-3R03002-D06 | 0.2 | 3 | 9 | 6 | 50 | 2 | Fig2 | ○ |
| HMA-2R03003-D04 | 0.3 | 3 | 9 | 4 | 50 | 2 | Fig2 | ○ |
| HMA-2R03003-D06 | 0.3 | 3 | 9 | 6 | 50 | 2 | Fig2 | ○ |
| HMA-2R03005-D04 | 0.5 | 3 | 9 | 4 | 50 | 2 | Fig2 | ○ |
| HMA-2R03005-D06 | 0.5 | 3 | 9 | 6 | 50 | 2 | Fig2 | ○ |
| HMA-2R04002 | 0.2 | 4 | 11 | 4 | 50 | 2 | Fig1 | ○ |
| HMA-2R04002-D06 | 0.2 | 4 | 11 | 6 | 50 | 2 | Fig2 | ○ |
| HMA-2R04005 | 0.5 | 4 | 11 | 4 | 50 | 2 | Fig1 | ○ |
| HMA-2R04005-D06 | 0.5 | 4 | 11 | 6 | 50 | 2 | Fig2 | ○ |
| HMA-2R04010 | 1 | 4 | 11 | 4 | 50 | 2 | Fig1 | ○ |
| HMA-2R05002-D06 | 0.2 | 5 | 13 | 6 | 50 | 2 | Fig2 | ○ |
| HMA-2R05003-D06 | 0.3 | 5 | 13 | 6 | 50 | 2 | Fig2 | ○ |
| HMA-2R05005-D06 | 0.5 | 5 | 13 | 6 | 50 | 2 | Fig2 | ○ |
| HMA-2R05010-D06 | 1 | 5 | 13 | 6 | 50 | 2 | Fig2 | ○ |
| HMA-2R05015-D06 | 1.5 | 5 | 13 | 6 | 50 | 2 | Fig2 | ○ |
