Home / Product / Hongrui Solid Carbide Tools / HMA series for machining aluminium alloy materials / HMA Series for Machining Aluminium Alloy Materials (3-flute R end mills with long shank)

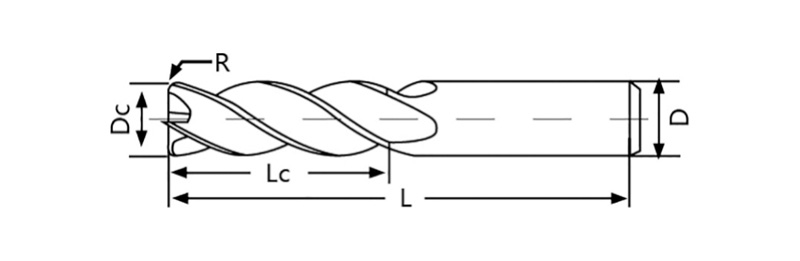

| Type | Basic dimension (mm) | Number of teeth | Stock | ||||
| R | Dc | Lc | D | L | |||
| HMA-3RH06005 | 0.5 | 6 | 16 | 6 | 75 | 2 | ○ |
| HMA-3RH06010 | 1 | 6 | 16 | 6 | 75 | 3 | ○ |
| HMA-3RH06015 | 1.5 | 6 | 16 | 6 | 75 | 3 | ○ |
| HMA-3RH06020 | 2 | 6 | 16 | 6 | 75 | 3 | ○ |
| HMA-3RH08005 | 0.5 | 8 | 20 | 8 | 100 | 3 | ○ |
| HMA-3RH08010 | 1 | 8 | 20 | 8 | 100 | 3 | ○ |
| HMA-3RH08015 | 1.5 | 8 | 20 | 8 | 100 | 3 | ○ |
| HMA-3RH08020 | 2 | 8 | 20 | 8 | 100 | 3 | ○ |
| HMA-3RH10005 | 0.5 | 10 | 25 | 10 | 100 | 3 | ○ |
| HMA-3RH10010 | 1 | 10 | 25 | 10 | 100 | 3 | ○ |
| HMA-3RH10015 | 1.5 | 10 | 25 | 10 | 100 | 3 | ○ |
| HMA-3RH10020 | 2 | 10 | 25 | 10 | 100 | 3 | ○ |
| HMA-3RH10025 | 2.5 | 10 | 25 | 10 | 100 | 3 | ○ |
| HMA-3RH12005 | 0.5 | 12 | 30 | 12 | 100 | 3 | ○ |
| HMA-3RH12010 | 1 | 12 | 30 | 12 | 100 | 3 | ○ |
| HMA-3RH12015 | 1.5 | 12 | 30 | 12 | 100 | 3 | ○ |
| HMA-3RH12020 | 2 | 12 | 30 | 12 | 100 | 3 | ○ |
| HMA-3RH12025 | 2.5 | 12 | 30 | 12 | 100 | 3 | ○ |
| HMA-3RH16005 | 0.5 | 16 | 36 | 16 | 150 | 3 | ○ |
| HMA-3RH16010 | 1 | 16 | 36 | 16 | 150 | 3 | ○ |
| HMA-3RH16015 | 1.5 | 16 | 36 | 16 | 150 | 3 | ○ |
| HMA-3RH16020 | 2 | 16 | 36 | 16 | 150 | 3 | ○ |
| HMA-3RH16025 | 2.5 | 16 | 36 | 16 | 150 | 3 | ○ |
| HMA-3RH20005 | 0.5 | 20 | 45 | 20 | 150 | 3 | ○ |
| HMA-3RH20010 | 1 | 20 | 45 | 20 | 150 | 3 | ○ |
| HMA-3RH20015 | 1.5 | 20 | 45 | 20 | 150 | 3 | ○ |
| HMA-3RH20020 | 2 | 20 | 45 | 20 | 150 | 3 | ○ |
| HMA-3RH20030 | 3 | 20 | 45 | 20 | 150 | 3 | ○ |
