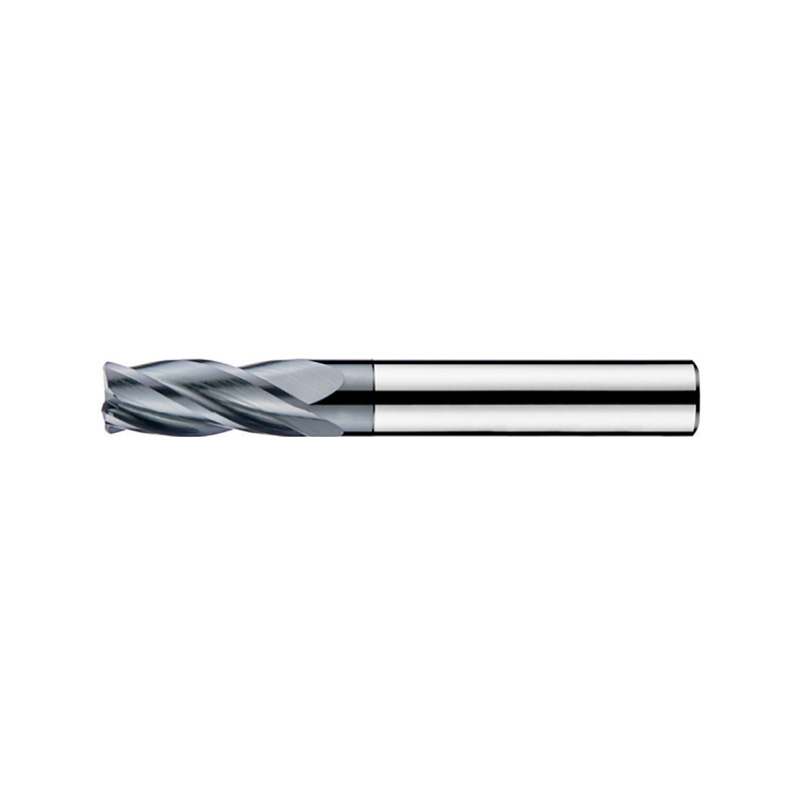

Home / Product / Hongrui Solid Carbide Tools / HMS series for machining hard-to-cut materials / HMS Series for Machining Hard-to-Cut Materials (4-flute R end mills with straight shank and double helix)

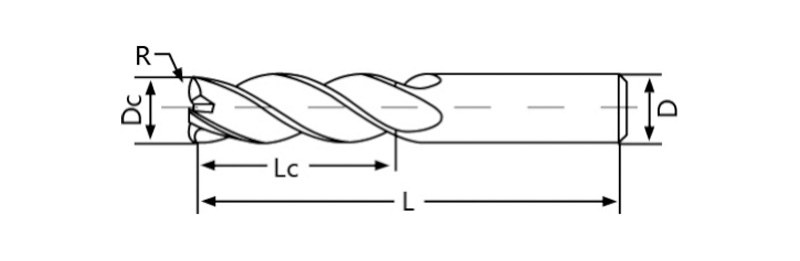

| Type | Basic dimension (mm) | Number of teeth | Stock | ||||
| R | Dc | Lc | D | L | |||
| HMS-4R06005-X | 0.5 | 6 | 16 | 6 | 50 | 4 | ○ |
| HMS-4R06010-X | 1 | 6 | 16 | 6 | 50 | 4 | ○ |
| HMS-4R08005-X | 0.5 | 8 | 20 | 8 | 60 | 4 | ○ |
| HMS-4R08010-X | 1 | 8 | 20 | 8 | 60 | 4 | ○ |
| HMS-4R10005-X | 0.5 | 10 | 25 | 10 | 75 | 4 | ○ |
| HMS-4R10010-X | 1 | 10 | 25 | 10 | 75 | 4 | ○ |
| HMS-4R10020-X | 2 | 10 | 25 | 10 | 75 | 4 | ○ |
| HMS-4R12005-X | 0.5 | 12 | 30 | 12 | 75 | 4 | ○ |
| HMS-4R12010-X | 1 | 12 | 30 | 12 | 75 | 4 | ○ |
| HMS-4R12020-X | 2 | 12 | 30 | 12 | 75 | 4 | ○ |
| HMS-4R16010-X | 1 | 16 | 45 | 16 | 100 | 4 | ○ |
| HMS-4R16020-X | 2 | 16 | 45 | 16 | 100 | 4 | ○ |
| HMS-4R16030-X | 3 | 16 | 45 | 16 | 100 | 4 | ○ |
| HMS-4R20010-X | 1 | 20 | 45 | 20 | 100 | 4 | ○ |
| HMS-4R20020-X | 2 | 20 | 45 | 20 | 100 | 4 | ○ |
| HMS-4R20030-X | 3 | 20 | 45 | 20 | 100 | 4 | ○ |
