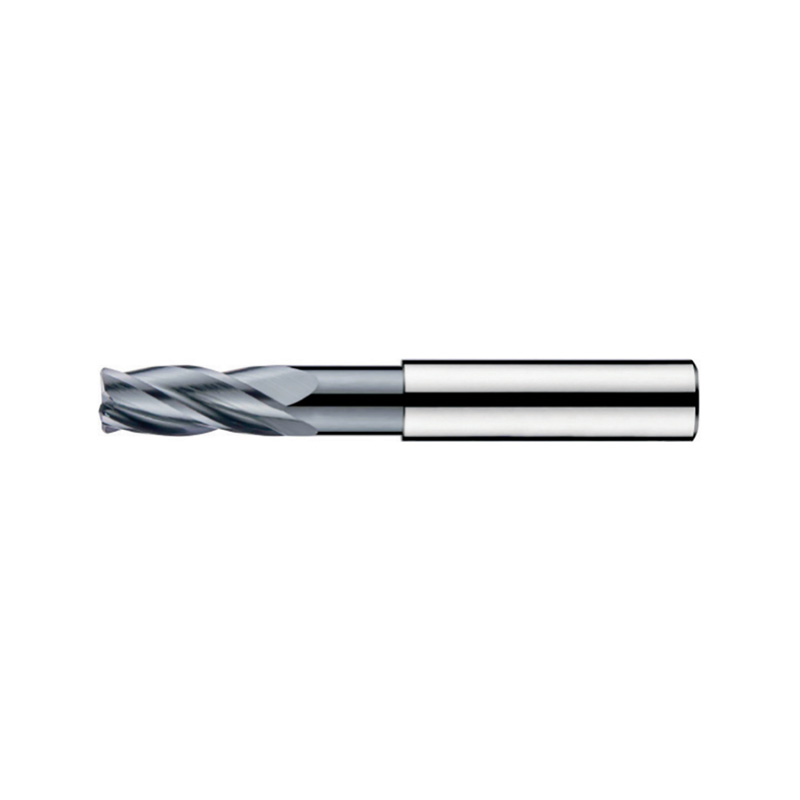

HMS Series for Machining Hard-to-Cut Materials (4-flute R end mills with straight shank, long neck , short cutting edge and double helix)

HMS Series for Machining Hard-to-Cut Materials (4-flute R end mills with straight shank, long neck , short cutting edge and double helix)

Contact Us
  • HMS Series for Machining Hard-to-Cut Materials (4-flute R end mills with straight shank, long neck , short cutting edge and double helix)
Description
Inquiry

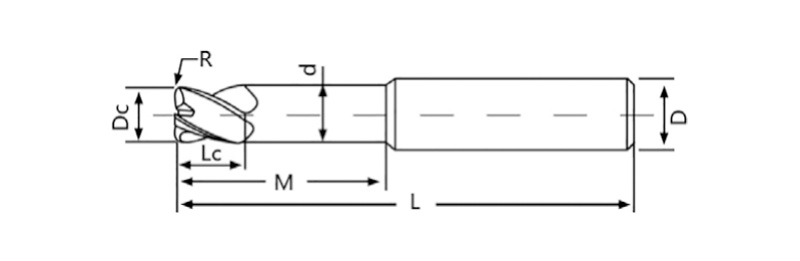

Type Basic dimension  (mm) Number of teeth Stock
R Dc Lc M d D L
HMS-4RNSO6005-M27X 0.5 6 9 27 5.7 6 75 4 ○
HMS-4RNSO6010-M27X 1 6 9 27 5.7 6 75 4 ○
HMS-4RNSO8005-M27X 0.5 8 12 36 7.7 8 100 4 ○
HMS-4RNSO8010-M27X 1 8 12 36 7.7 8 100 4 ○
HMS-4RNS10005-M27X 0.5 10 14 42 9.5 10 100 4 ○
HMS-4RNS10010-M27X 1 10 14 42 9.5 10 100 4 ○
HMS-4RNS10020-M27X 2 10 14 42 9.5 10 100 4 ○
HMS-4RNS12005-M27X 0.5 12 16 48 11.5 12 100 4 ○
HMS-4RNS12010-M27X 1 12 16 48 11.5 12 100 4 ○
HMS-4RNS12020-M27X 2 12 16 48 11.5 12 100 4 ○
HMS-4RNS16010-M27X 1 16 20 60 15.5 16 150 4 ○
HMS-4RNS16020-M27X 2 16 20 60 15.5 16 150 4 ○
● Stock available ○ Make-to-order
