Home / Product / Threading Inserts / ISO Metric Thread Series / ISO Metric Thread Male (ER-ISO)
Taizhou Ruian - Indexable hardmetal(carbide) inserts for cutting tools
Home / Product / Threading Inserts / ISO Metric Thread Series / ISO Metric Thread Male (ER-ISO)
| Blade model | Processing Pitch Range | Blade Size | Coating Grade | |||||||
| mm | Number Of Teeth/Inch | IC | S | x | Y | RP9125B | RP1020 | RP1120A | RP1225 | |

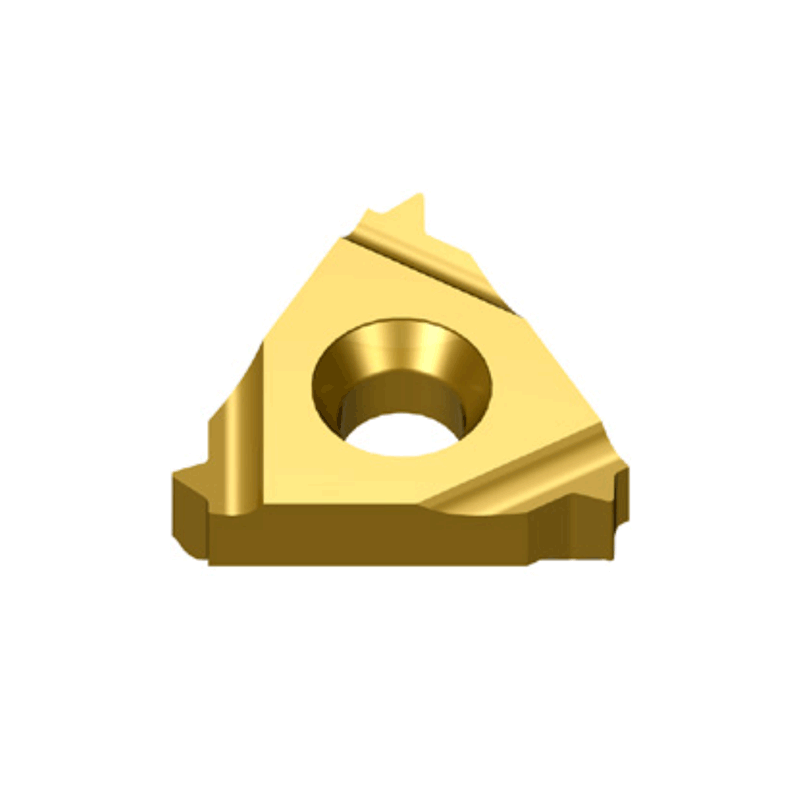

| 16ER0.50ISO | 0.5 | 9.525 | 3.52 | 0.4 | 0.6 | ● | ● | |||
| 16ER1.00ISO | 1.0 | 9.525 | 3.52 | 0.7 | 0.7 | ● | ● | |||
| 16ER1.25ISO | 1.25 | 9.525 | 3.52 | 0.9 | 0.8 | ● | ● | |||
| 16ER1.50ISO | 1.5 | 9.525 | 3.52 | 1 | 0.8 | ● | ● | |||
| 16ER2.00ISO | 2.0 | 9.525 | 3.52 | 1.3 | 1 | ● | ● | |||
| 22ER2.50ISO | 2.5 | 9.525 | 3.52 | 1.5 | 1.1 | ● | ● | |||
| 22ER3.00ISO | 3.0 | 9.525 | 3.52 | 1.6 | 1.2 | ● | ● | |||
| 22ER3.50ISO | 3.5 | 12.7 | 4.65 | 2.3 | 1.6 | ● | ● | |||
| 22ER4.00ISO | 4.0 | 12.7 | 4.65 | 2.3 | 1.6 | ● | ● | |||
| 22ER4.50ISO | 4.5 | 12.7 | 4.65 | 2.4 | 1.7 | ● | ● | |||
| 22ER5.00ISO | 5.0 | 12.7 | 4.65 | 2.5 | 1.7 | ● | ● | |||
