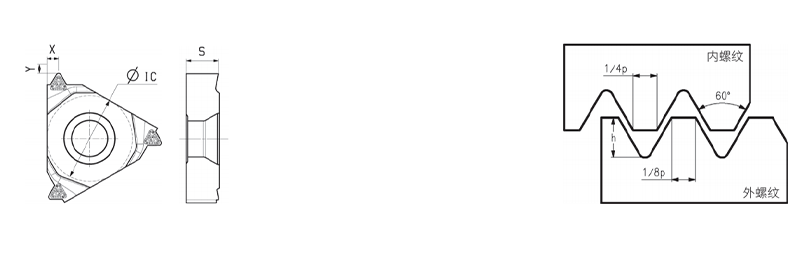

![Unified Agreement Thread [UN] External Thread (ER-UN)](/tzruian/2022/12/30/er-un.png)
| Blade Model | Processing Pitch Range | Blade Size | Coating Grade | |||||||
| mm | Number Of Teeth / Inch | IC | S | x | Y | RP9125B | RP1020 | RP1120A | RP1225 | |
| 16ER8UN | 8 | 9.525 | 3.52 | 1.6 | 1.2 | ● | ● | |||
| 16ER10UN | 10 | 9.525 | 3.52 | 1.5 | 1.1 | ● | ● | |||
| 16ER12UN | 12 | 9.525 | 3.52 | 1.4 | 1.1 | ● | ● | |||
| 16ER14UN | 14 | 9.525 | 3.52 | 1.2 | 1.0 | ● | ● | |||
| 16ER16UN | 16 | 9.525 | 3.52 | 1.1 | 0.9 | ● | ● | |||
| 16ER18UN | 18 | 9.525 | 3.52 | 1.0 | 0.8 | ● | ● | |||
| 16ER20UN | 20 | 9.525 | 3.52 | 0.9 | 0.8 | ● | ● | |||
| 16ER24UN | 24 | 9.525 | 3.52 | 0.8 | 0.7 | ● | ● | |||
● Standing Stock
