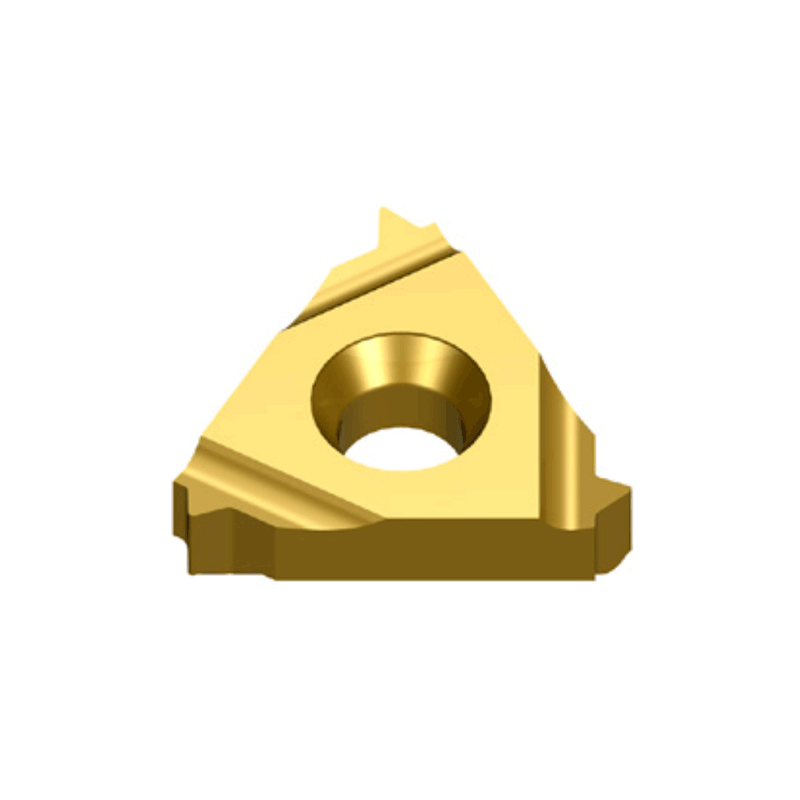

Whitworth Taper Pipe Thread [BSPT] Internal Thread (IR-BSPT)

Whitworth Taper Pipe Thread [BSPT] Internal Thread (IR-BSPT)

Contact Us
  • Whitworth Taper Pipe Thread [BSPT] Internal Thread (IR-BSPT)
Description
Inquiry

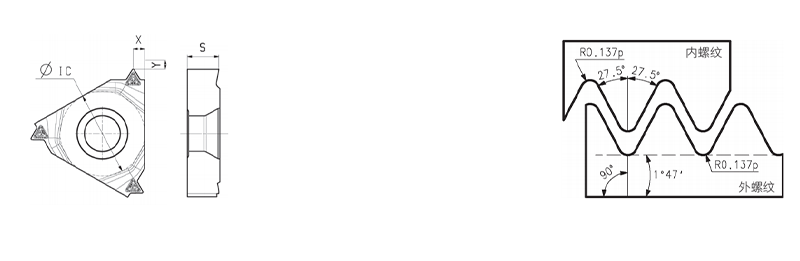

Blade Model Processing Pitch Range Blade Size Coating Grade
mm Number Of Teeth / Inch IC S x Y RP9125B RP1020 RP1120A RP1225
16IR11BSPT 11 9.525 3.52 1.5 1.1 ● ●
16IR14BSPT 14 9.525 3.52 1.2 1.0 ● ●
16IR19BSPT 19 9.525 3.52 0.9 0.8 ● ●
16IR28BSPT 28 9.525 3.52 0.6 0.6 ● ●

● Standard Stock
