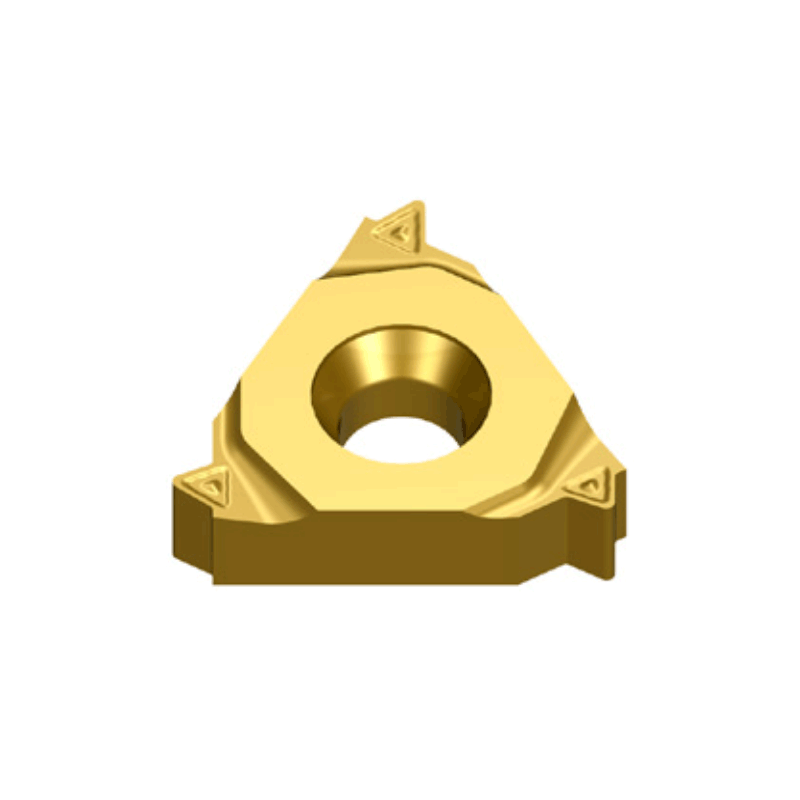

Whitworth Taper Pipe Thread [BSPT] Male (ER-BSPTA)

Whitworth Taper Pipe Thread [BSPT] Male (ER-BSPTA)

Contact Us
  • Whitworth Taper Pipe Thread [BSPT] Male (ER-BSPTA)
Description
Inquiry

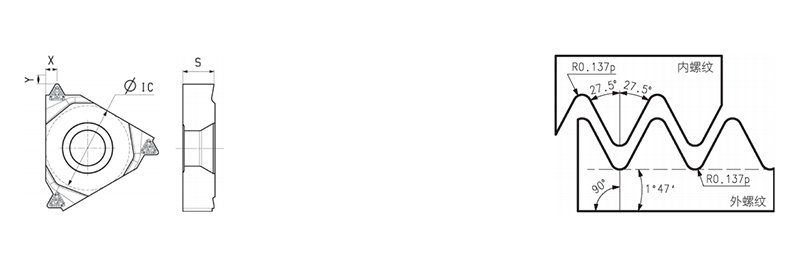

Blade Model Processing Pitch Range Blade Size Coating Grade
mm Number of Teeth / Inch IC S x Y RP9125B RP1020 RP1120A RP1225
16ER11BSPTA 11 9.525 3.52 1.5 1.1 ● ●
16ER14BSPTA 14 9.525 3.52 1.2 1.0 ● ●
16ER19BSPTA 19 9.525 3.52 0.9 0.8 ● ●
16ER28BSPTA 28 9.525 3.52 0.6 0.6 ● ●

● Standard Stock
