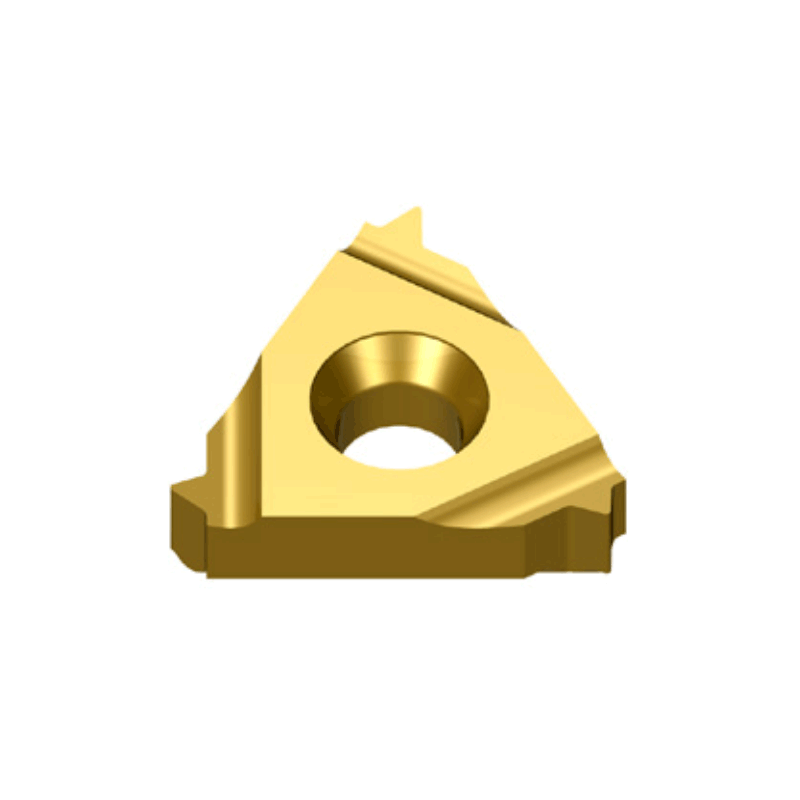

Whitworth Taper Pipe Thread [BSPT] Male Thread (ER-BSPT)

Whitworth Taper Pipe Thread [BSPT] Male Thread (ER-BSPT)

Contact Us
  • Whitworth Taper Pipe Thread [BSPT] Male Thread (ER-BSPT)
Description
Inquiry
Blade Model Processing Pitch Range Blade Size Coating Grade
mm Number Of Teeth / Inch IC S x Y RP9125B RP1020 RP1120A RP1225
16ER11BSPT 11 9.525 3.52 1.5 1.1 ● ●
16ER14BSPT 14 9.525 3.52 1.2 1.0 ● ●
16ER19BSPT 19 9.525 3.52 0.9 0.8 ● ●
16ER28BSPT 28 9.525 3.52 0.6 0.6 ● ●

● Standard Stock
